Components And Components Location: Components

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

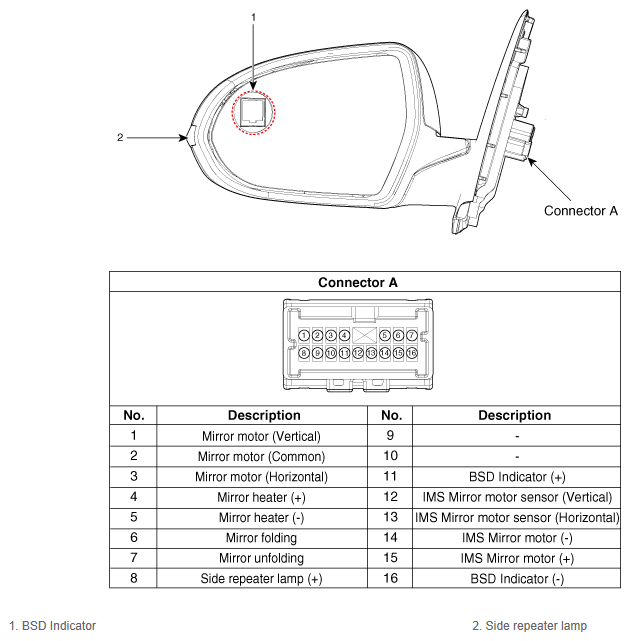

Fig 1: Blind Spot Detection Indicator Components And Connector End View
G12332358Courtesy of KIA MOTORS AMERICA, INC.
