Section 155 (Occupant Classification System Diagnosis)
>>
DTC B1697: ACU Communication Error
>>
Component Location
>>
Component Location
Component Location
WARNING:
This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

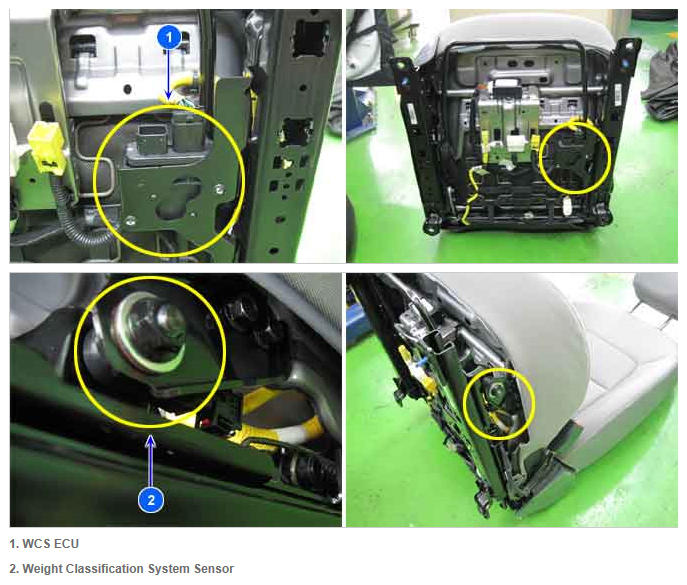

Fig 1: Locating WCS ECU And WCS (Weight Classification System) Sensor Components
Courtesy of KIA MOTORS AMERICA, INC.
