Monitor GDS Data
WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Connect GDS.
- IG "ON" and Engine "OFF".

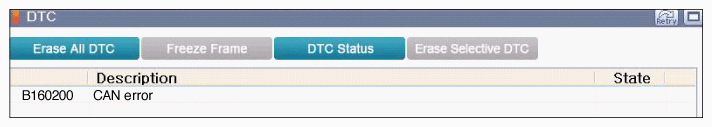

- Select "Diagnostic Trouble Codes (DTC)" mode.
- After erase DTC, keep the vehicle condition within "The Enable Conditions" (Refer to DTC DETECTING CONDITION table).
- Is the same DTC occurred again?
YES
- Go to next procedure.
NO
- Fault is intermittent caused by poor contact in the BCM's connector or was repaired and BCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
