Monitor Current Data

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Connect KDS and select "Current Data " mode.
After driving at 25 KPH (15 MPH) for approx. 10~20 minutes.
Check that current data is correctly displayed while driving.
Monitor the service data of each TPMS sensor on the KDS.

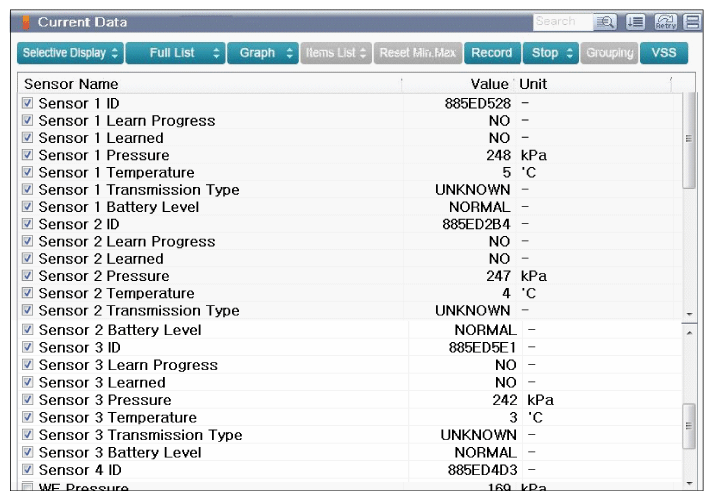

Fig 1: Scantool Display - Data Displayed By TPMS Module
Courtesy of KIA MOTORS AMERICA, INC.
Current data is normally displayed?
YES
- Fault is intermittently caused or was repaired and TPMS Module memory was not cleared.
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Check if the TPMS sensor which is not fitted with the vehicle specifications is installed.
- Substitute with a known-good TPMS Module and check for proper operation. If problem is corrected, replace TPMS Module and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- After replacing with a known-good TPMS Module (or TPMS Module), you must do the 'Vehicle Name Writing', 'VIN Writing' and 'Register Sensor' at the "Vehicle S/W Management " mode by using KDS and KDS TPMS.
