Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When servicing the washer pump, be careful not to damage the washer pump seal.
  • Do not operate the washer pump before filling the washer reservoir.

    Failure to do so could result in premature pump failure.

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

  3. Remove the washer hose and disconnect the washer motor connector (A).
    Fig 1: Disconnecting Washer Motor Connector
    G12164961Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the washer reservoir after loosening bolts and screw.

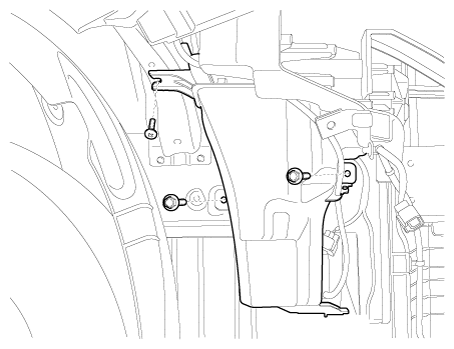

Fig 2: Removing Washer Reservoir Bolts And Screw
G12164962Courtesy of KIA MOTORS AMERICA, INC.
