Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Disconnect the vacuum pump connector (A).

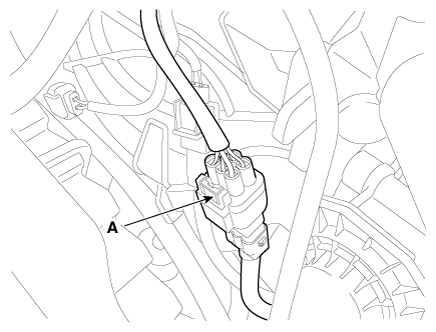

Fig 1: Locating Vacuum Pump Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the air duct and air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER (2.0L)AIR CLEANER (1.6L) ")
Disconnect the vacuum hose clip (A) and wiring harness clip (B) from the vacuum pump bracket.

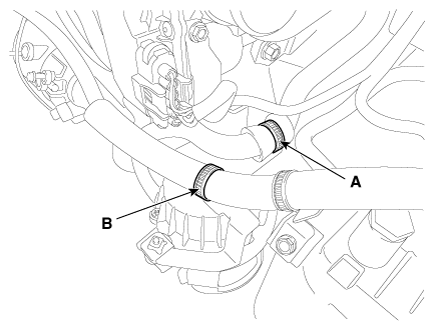

Fig 2: Locating Vacuum Hose Clip And Wiring Harness Clip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the under covers (A).
Tightening Torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

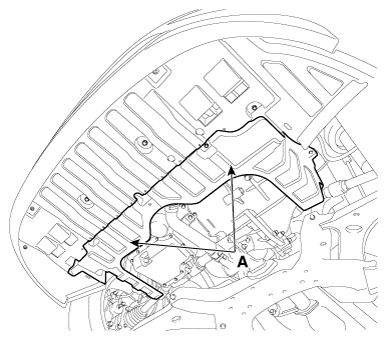

Fig 3: Locating Under Covers
Courtesy of KIA MOTORS AMERICA, INC.
Remove the intercooler inlet hose (A).

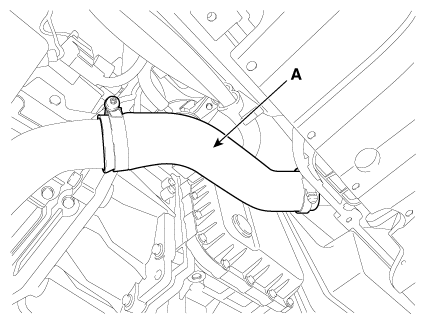

Fig 4: Locating Intercooler Inlet Hose
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the vacuum hose (A).

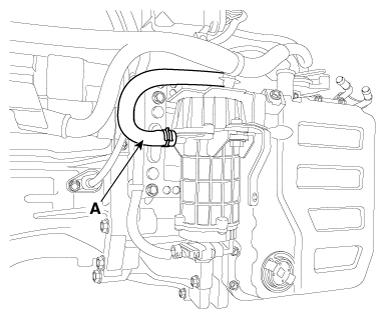

Fig 5: Locating Vacuum Hose
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the vacuum pump bracket bolts (A) and then remove vacuum pump and bracket.
Tightening Torque:

19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

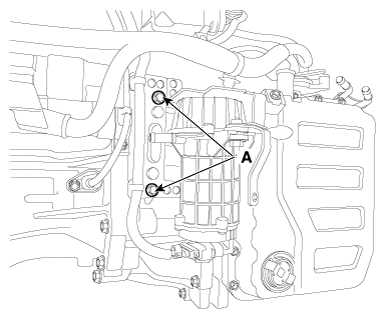

Fig 6: Locating Vacuum Pump Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the bolts and then remove the vacuum pump (A) and lead wire assembly (B) from the bracket (C).
Tightening Torque:

6.0 - 8.0 N.m (0.61 - 1.82 kgf.m, 4.4 - 5.9 lb.ft)

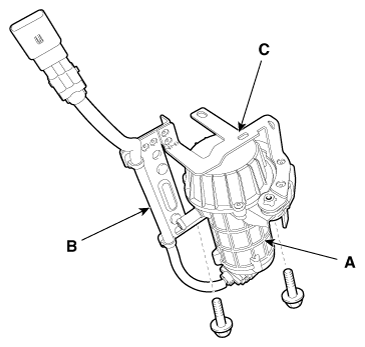

Fig 7: Locating Vacuum Pump, Lead Wire Assembly And Bracket With Bolts
Courtesy of KIA MOTORS AMERICA, INC.
