Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")

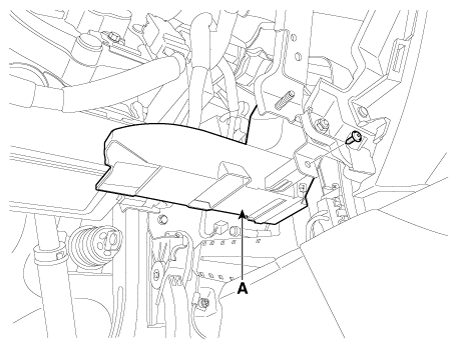

Remove the shower duct (A).

Fig 1: Locating Shower Duct
Courtesy of KIA MOTORS AMERICA, INC.

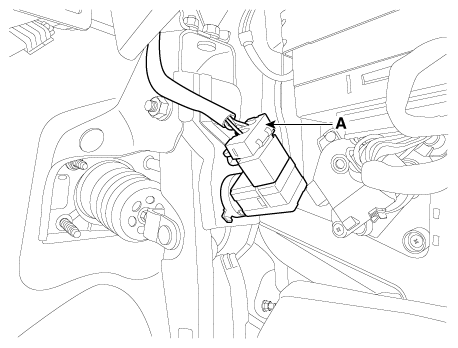

Disconnect the stop lamp switch connector (A).

Fig 2: Locating Stop Lamp Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

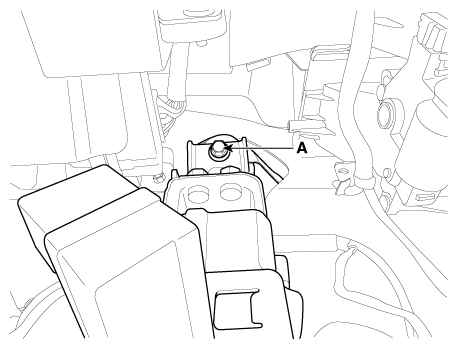

Remove the brake pedal member mounting bolt (A).

Fig 3: Locating Brake Pedal Member Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the snap pin (A) and clevis pin (B).

Fig 4: Locating Snap Pin And Clevis Pin
Courtesy of KIA MOTORS AMERICA, INC.

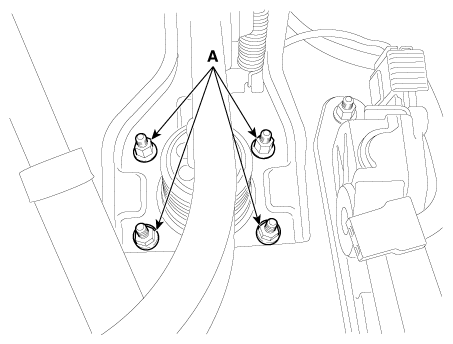

Remove the brake pedal member assembly mounting nuts (A) and then remove the brake pedal assembly.

Fig 5: Locating Brake Pedal Member Assembly Mounting Nuts

Courtesy of KIA MOTORS AMERICA, INC.
