Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the battery (A) and ECM (B).

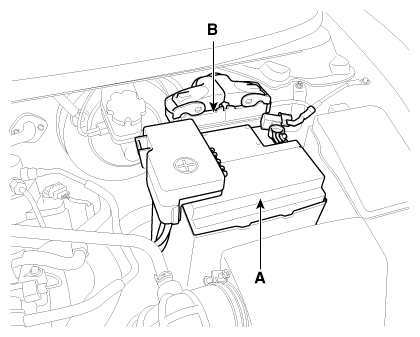

Fig 1: Locating Battery And ECM
Courtesy of KIA MOTORS AMERICA, INC.
Remove the master cylinder.
(Refer to MASTER CYLINDER )
Remove the snap pin (A) and clevis pin (B).

Fig 2: Locating Snap Pin And Clevis Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the mounting nuts (A).
Tightening Torque:

16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb.ft)

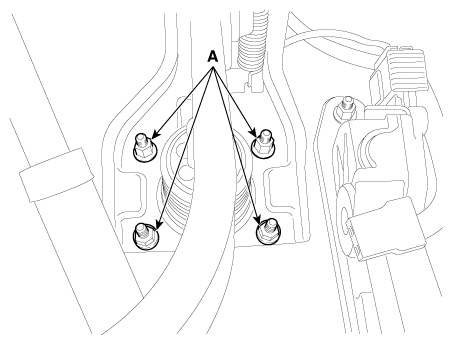

Fig 3: Locating Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the vacuum hose (A) from the brake booster.

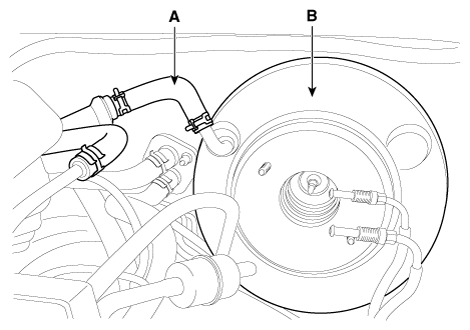

Fig 4: Locating Brake Booster And Vacuum Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake booster (B).
