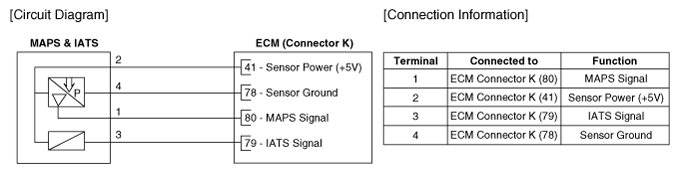

Home >> Kia >> 2017 >> Forte EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L GDI >> Intake Air Temperature Sensor (IATS) >> Schematic Diagrams >> Circuit Diagram >> (M/T)
