Components And Components Location: Components

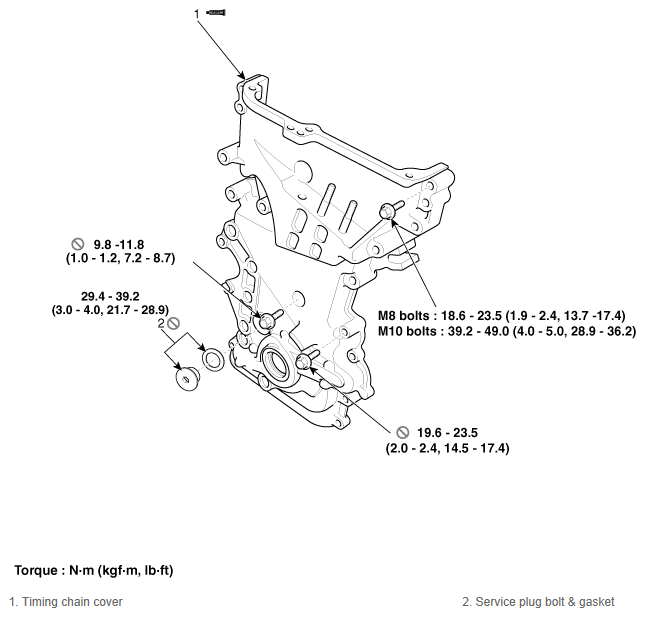

Fig 1: Timing Chain Cover Components With Torque Specification

G12162732

Courtesy of KIA MOTORS AMERICA, INC.
