Repair Procedures: Replacement

CAUTION:

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

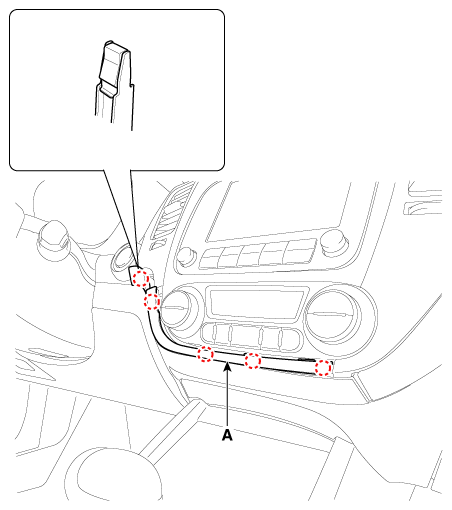

Using a screwdriver or remover, remove the center garnish [LH] (A).

Fig 1: Locating Center Garnish (LH)
Courtesy of KIA MOTORS AMERICA, INC.

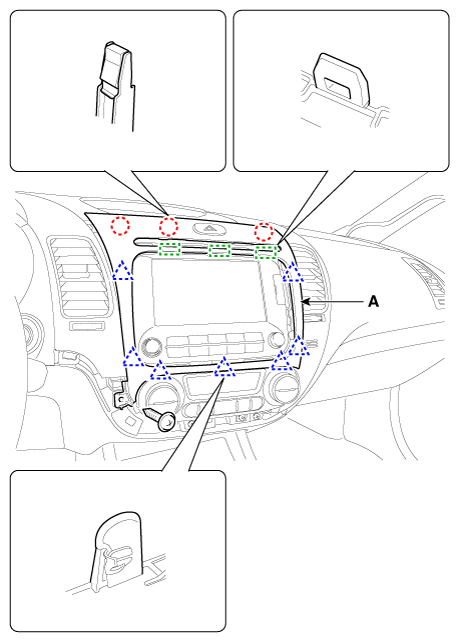

After loosening the mounting screw, then remove the center fascia panel (A).

Fig 2: Locating Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

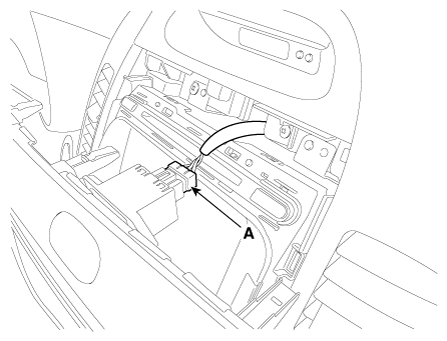

Disconnect the hazard switch connector (A).

Fig 3: Locating Hazard Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips.
