Home >> Kia >> 2017 >> Forte EX >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System - 2.0L GDI >> Battery >> Troubleshooting

Charging System - 2.0L GDI: Battery: Troubleshooting

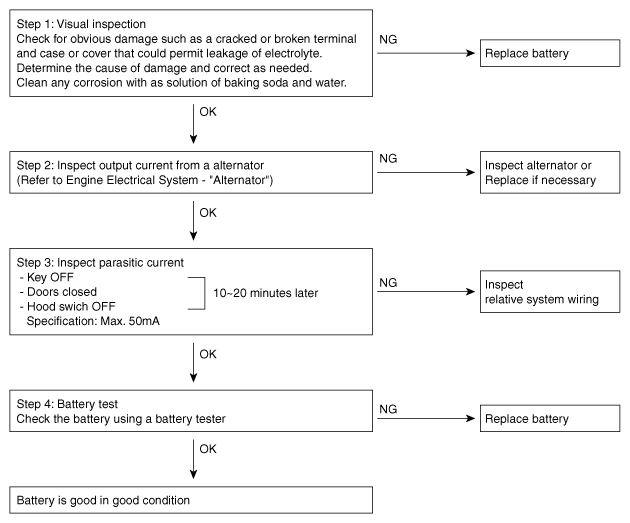

Fig 1: Battery Troubleshooting Procedure Chart

G12163123

Courtesy of KIA MOTORS AMERICA, INC.
