Standard Flow Of Diagnostic Troubleshooting

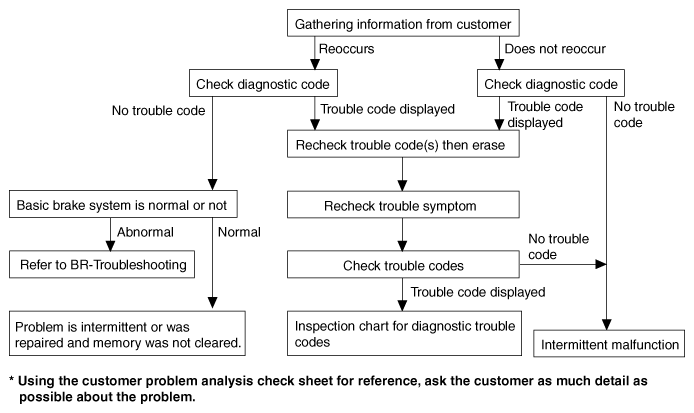

Fig 1: Standard Flow Chart Of Diagnostic Troubleshooting

G12163872

Courtesy of KIA MOTORS AMERICA, INC.
