Monitor KDS/GDS Data

  1. Ignition "OFF"
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON" & ESP/ESC switch "OFF"
  4. Lift the vehicle & Gear level position "D" & No brake applied.
  5. Monitor "Wheel speed sensor" parameters in "Current Data" with KDS/GDS.

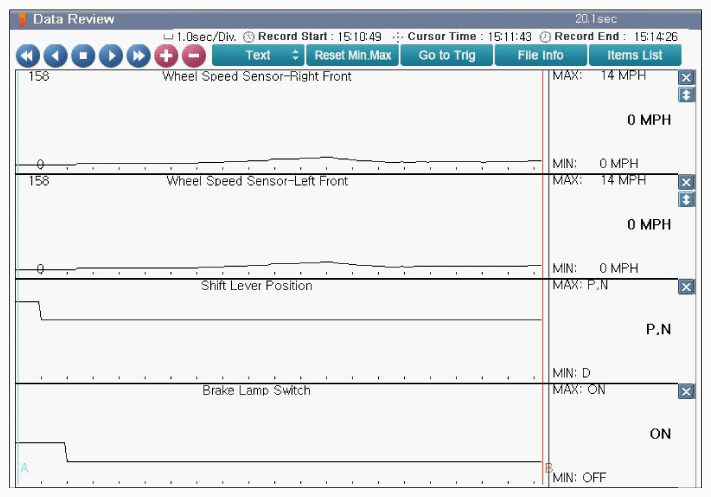

    Fig 1: Scantool Display - Wheel Speed Sensor Current Data At Gear Level Position D Condition
    G12160186Courtesy of KIA MOTORS AMERICA, INC.
  6. Is the displayed parameter changed?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.

    NO
