Repair Procedures: Removal

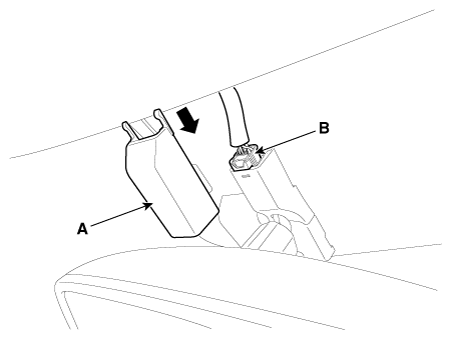

Remove the mirror wiring cover (A).
Disconnect the mirror connector (B).

Fig 1: Removing Mirror Wiring Cover
Courtesy of KIA MOTORS AMERICA, INC.

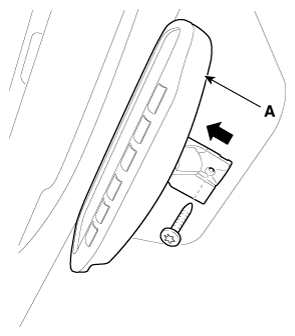

Loosen the mirror mounting screw.
Push the mirror base up to remove the mirror assembly (A).

Fig 2: Removing Mirror Assembly

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Take care not to damage the mounting bracket during removal.
