Components And Components Location: Components

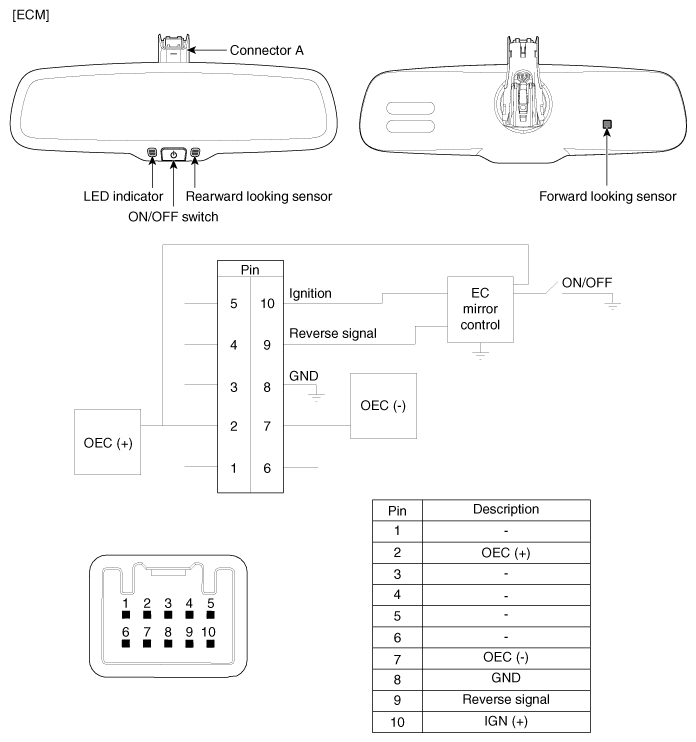

Fig 1: Electro Chronic Inside Rear View Mirror Circuit Diagram (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

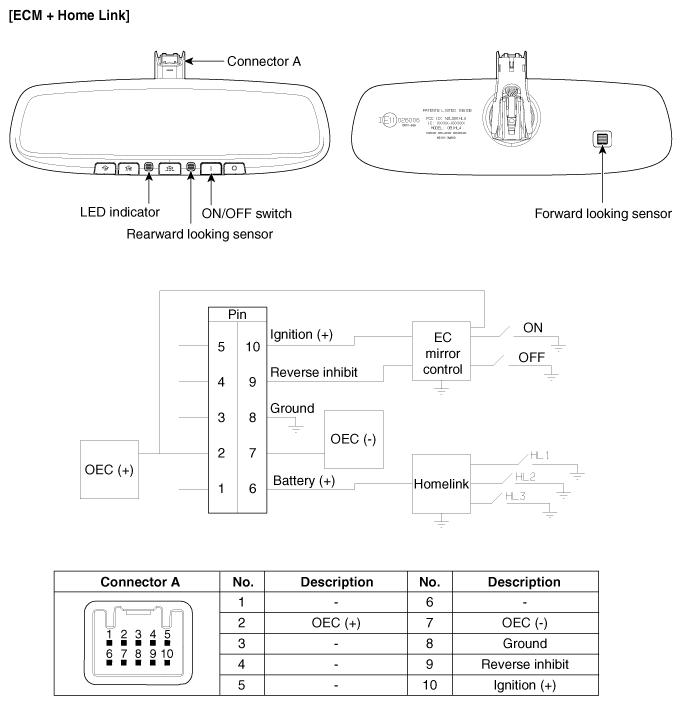

Fig 2: Electro Chronic Inside Rear View Mirror Circuit Diagram (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
