Repair Procedures: Replacement

CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the rear seat cushion assembly.

    (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

  2. Remove the rear seat back assembly.

    (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

  3. Remove the front pillar trim.

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  4. Remove the center pillar upper trim.

    (Refer to Interior Trim - "CENTER PILLAR TRIM ")

  5. Remove the rear package tray trim. (4Door, 2Door)

    (Refer to Interior Trim - "REAR PACKAGE TRAY TRIM ")

  6. Remove the sunvisor and retainer.

    (Refer to Roof Trim - "SUNVISOR ")

  7. Remove the assist handle.

    (Refer to Roof Trim - "ASSIST HANDLE ")

  8. Remove the garment hook. (2Door)

    (Refer to Roof Trim - "GARMENT HOOK ")

  9. Remove the overhead console lamp.

    (Refer to Body Electrical System - "OVERHEAD CONSOLE LAMP ")

  10. Remove the room lamp.

    (Refer to Body Electrical System - "ROOM LAMP ")

  11. Remove the rear window glass.

    (Refer to [REMOVAL] "Rear Window Glass")

  12. Tilt the front seat back towards the rear of the vehicle as far as possible.
  13. Remove the ECM mirror cover (A).
  14. Disconnect the ECM mirror connector (B).
    Fig 1: Removing ECM Mirror Cover
    G12164181Courtesy of KIA MOTORS AMERICA, INC.
  15. Remove the auto defog sensor cover (A).
  16. Disconnect the auto defog sensor connector (B).
    Fig 2: Locating Auto Defog Sensor Cover And Auto Defog Sensor Connector
    G12164182Courtesy of KIA MOTORS AMERICA, INC.
  17. Disconnect the roof trim main connector (A) and the mounting clips (B) in the front pillar.

    [Driver's]

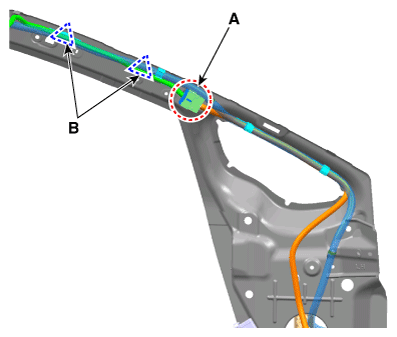

    Fig 3: Locating Roof Trim Main Connector And Mounting Clips - Driver's
    G12164183Courtesy of KIA MOTORS AMERICA, INC.
  18. Using a clip remover, detach the roof trim assembly mounting clips.
  19. Pull back the roof trim assembly (A) through the place where the rear window glass was removed.
    CAUTION:
    • Take care not to damage the roof trim when removing.

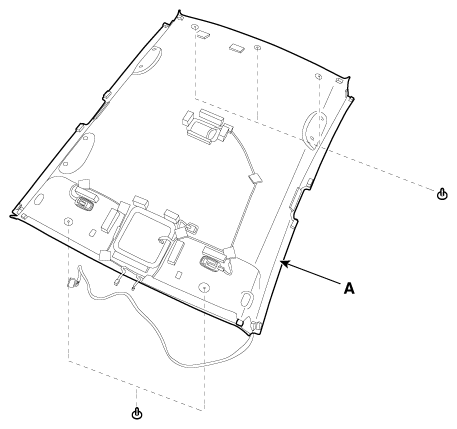

    Fig 4: Locating Roof Trim Assembly With Clips
    G12164184Courtesy of KIA MOTORS AMERICA, INC.
  20. Remove the vanity lamp.

    (Refer to Body Electrical System - "VANITY LAMP ")

  21. Remove the hands free mic.

    (Refer to Body Electrical System - "HANDS FREE MIC ")

  22. Remove roof trim wiring harness (A) from the roof trim (B).
    NOTE:
    • Take care not to damage the roof trim wiring harness (A) when removing.

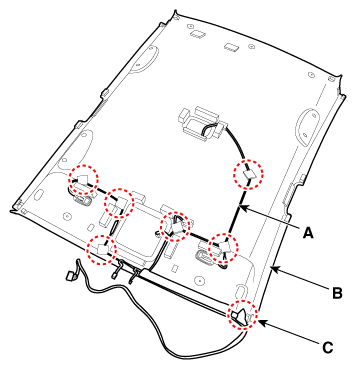

    Fig 5: Locating Roof Trim Wiring Harness, Anti-Noise Pad And Roof Trim
    G12164185Courtesy of KIA MOTORS AMERICA, INC.

    Information

    1. Apply the hot melt continuously when installing the roof trim wiring harness (A) on the roof trim (B) using the hot melt gun tool.
    2. Put anti-noise pad (C) on roof trim (B) to prevent the noise.
  23. Install in the reverse order of removal.

    Information

    • Make sure the connector is plugged in properly.
    • Replace any damaged clips.
