Component Inspection

■ Check HO2S (S1)_UP Heater

1. IG KEY "OFF".
2. Disconnect HO2S (S1)_UP connector.
3. Measure resistance between heater power and heater control terminal of HO2S (S1)_UP (Component Side)

   Specification  :

   ITEM	Specification
   Heater Resistance (Ω)	Approx. 3.2Ω ± 0.8Ω at 20°C (68°F)

4. Connect GDS to Data Link Connector (DLC)
5. Engine ON
6. Perform "Additive Correction for O2 Sensor Heater B1S1" in the "Actuation test" with GDS
7. Monitor "O2 Heater Bank 1 Sensor 1 Duty Cycle (LSU)" parameter on the Current Data with GDS and check if value changes.
8. Is parameter displayed changed?

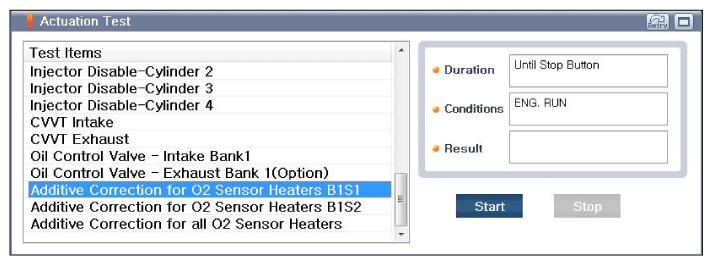

   Fig 1: Screen Display - Additive Correction For O2 Sensor Heater B1S1 In Actuation Test With GDS

   Courtesy of KIA MOTORS AMERICA, INC.

   YES

   • Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage. So, check poor connections and the related circuit between ECM/PCM and component thoroughly. Repair as necessary and go to "Verification of Vehicle Repair " procedure.

   NO

   • Substitute with a known - good HO2S (S1)_UP and check for proper operation. If the problem is corrected, replace HO2S (S1)_UP and go to "Verification of Vehicle Repair " procedure.
