Engine Control System Diagnosis - 2.0L GDI (1 Of 3)
>>
DTC P0123: Throttle Position Sensor 1 Signal Circuit High Input
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

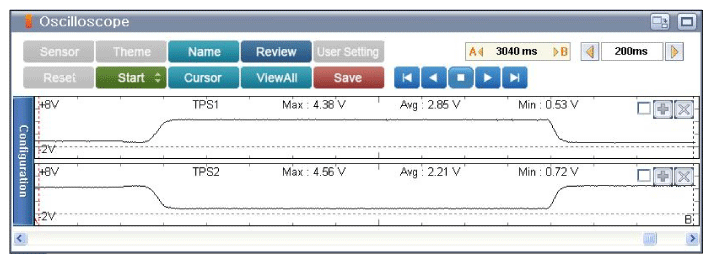

Fig 1: Screen Display - Normal Waveform Of TPS1 & TPS2 With No Accel Pedal Depressed Under IG ON Condition
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
