Signal Waveform & Data

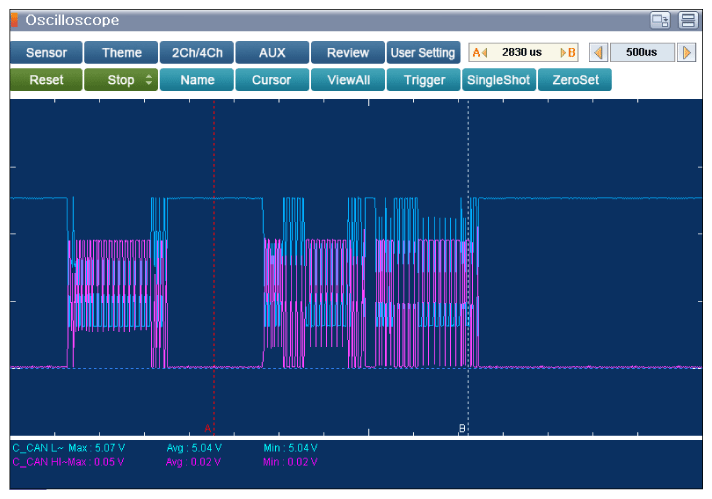

Fig 1: Scantool Display - C_CAN Low & High Signal Waveform
G12160437Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Scantool Display - C_CAN Bus Voltage Level (High Speed CAN)
G12160438Courtesy of KIA MOTORS AMERICA, INC.
