Steering Wheel Play Inspection

  1. Turn the steering wheel so that the front wheels are facing straight ahead.
  2. Measure the distance that the steering wheel can be turned without moving the front wheels.

    Standard value:  0 - 30mm (1.1811 in.) or less

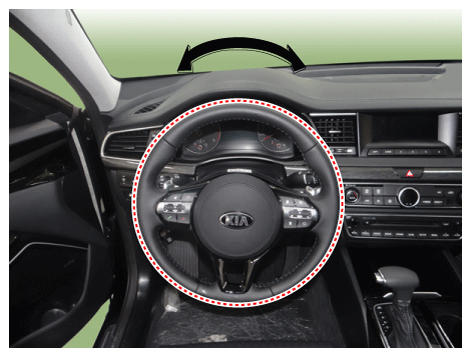

    Fig 1: Inspecting Steering Wheel Play
    G12294183Courtesy of KIA MOTORS AMERICA, INC.
  3. If the play exceeds standard value, inspect the steering column, shaft, and linkages.
