Terminal And Connector Inspection

Many malfunctions in the electrical system are caused by poor harness (es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Has a problem been found?

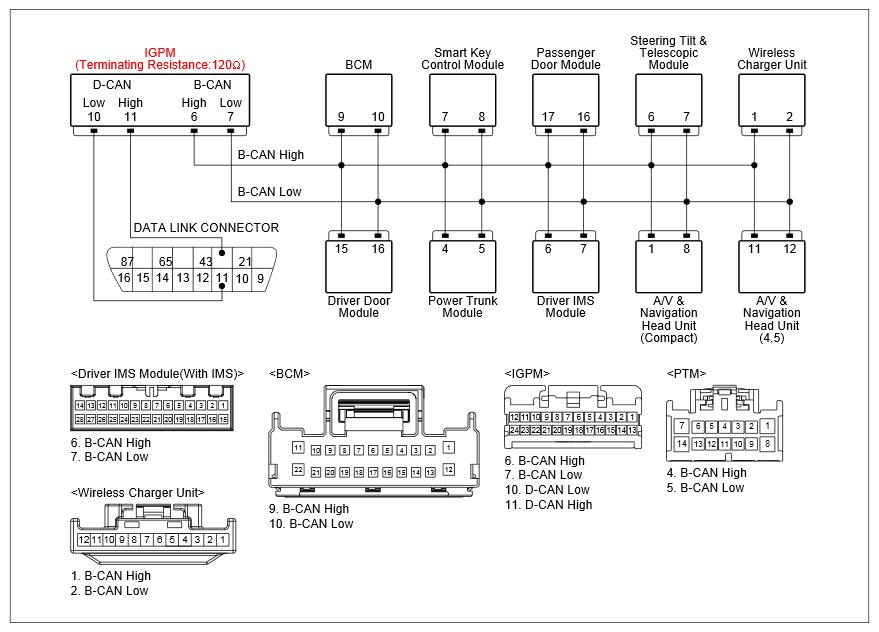

Fig 1: IGPM Circuit Diagram With Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.

YES
- Repair as necessary, go to "VERIFICATION OF REPAIR " procedure.
NO
- Go to "CAN SIGNAL CIRCUIT INSPECTION " as below.
