Repair procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the crash pad plate [LH] (A) after loosening the screws.
    Fig 1: Removing Crash Pad Plate Screws (LH)
    G12332353Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the crash pad side switch connector (A).

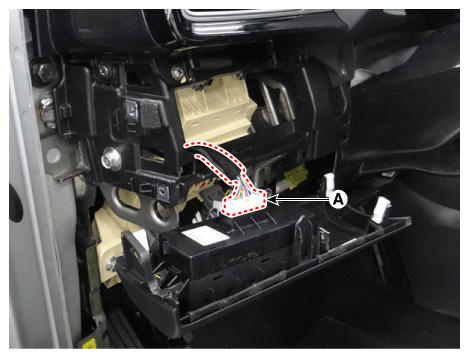

    Fig 2: Locating Crash Pad Side Switch Connector
    G12332354Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the crash pad side switch (A) after loosening the screws.
Fig 3: Locating Crash Pad Side Switch
G12332355Courtesy of KIA MOTORS AMERICA, INC.
