Repair procedures: Inspection

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the BSD switch connector from the crash pad side switch.

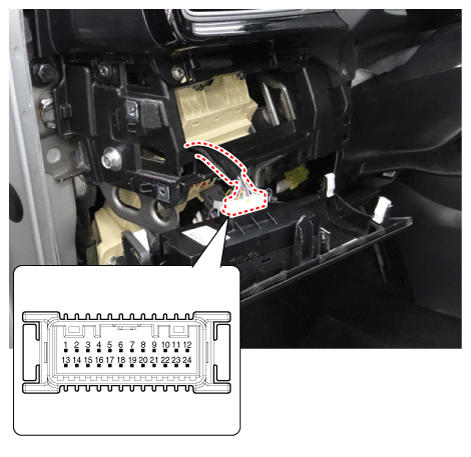

Fig 1: Locating BSD Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Operate the BSD switch, then check for continuity between terminals and BSD switch connector.

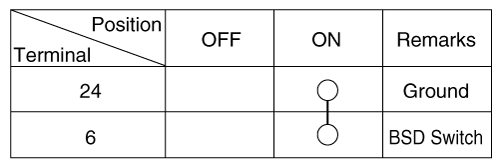

Fig 2: BSD Switch Terminal Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
