Blind Spot Detection Warning Indicator

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the mirror (A) from the mirror holder.

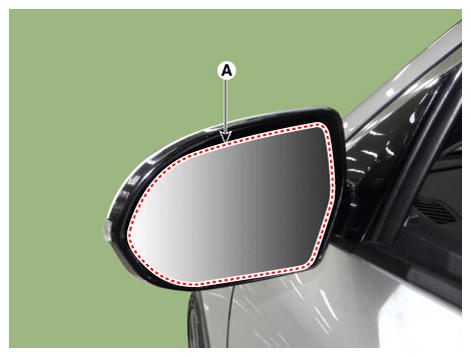

Fig 1: Locating Mirror From Mirror Holder
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the mirror heated connector (B) and BSD indicator connector (A).

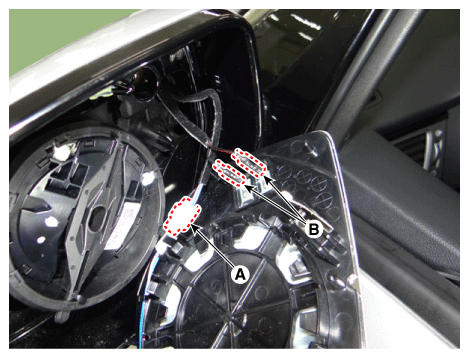

Fig 2: Locating Mirror Heated Connector And BSD Indicator Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the BSD indicator (A).

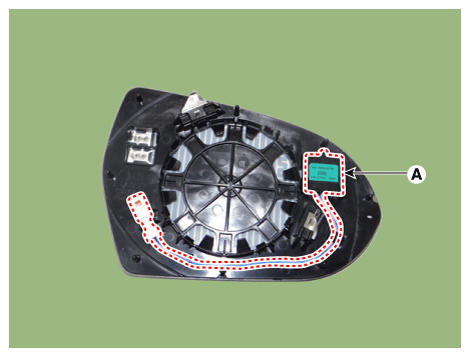

Fig 3: Locating BSD Indicator

Courtesy of KIA MOTORS AMERICA, INC.
