Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the evaporator core.

    (Refer to Air Conditioner - "EVAPORATOR CORE ".)

  2. Remove the evaporator temperature sensor (A).

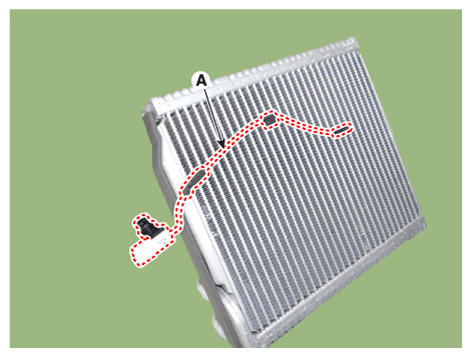

    Fig 1: Removing Evaporator Temperature Sensor
    G12335330Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
