Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the front door module.
(Refer to Front Door - "FRONT DOOR MODULE ")

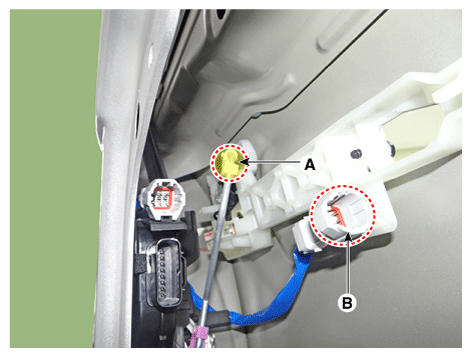

Disconnect the front door latch rod (A) and extension wiring clip (B).

Fig 1: Disconnecting Front Door Latch Rod And Extension Wiring Clip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front door latch (B) after loosening the mounting screw (A).

Fig 2: Removing Front Door Latch Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Information

Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly.
Replace any damaged clips.
