Teaching MODE Procedure Description (Step By Step)

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Objective: Key teaching procedure at service station

Initial state:

SMK replacement: SMK is not Learnt and SMART FOB are already Learnt with same PIN code
Additional or new keys teaching: SMK are already Learnt with same PIN code

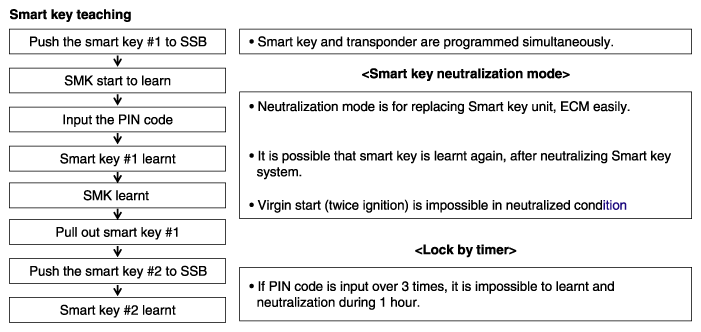

Fig 1: Smart Key Teaching Flow Chart

Courtesy of KIA MOTORS AMERICA, INC.
