Repair Procedures: Installation

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.
Operate by using KDS as in the order below after filling regulation hydraulic fluid in reservoir.
Specified Hydraulic Fluid: Brake fluid DOT 3

Quantity:

Fill the hydraulic fluid to the reservoir so that it comes between the MAX and MIN levels of the reservoir.
1. Bleed the air from engine clutch hydraulic pressure line.
  Information

  Be sure to bleed air from the engine clutch hydraulic pressure line at outside temperature between 0 - 40°C (32 - 104°F). If not, the air bleeding would be not done well.

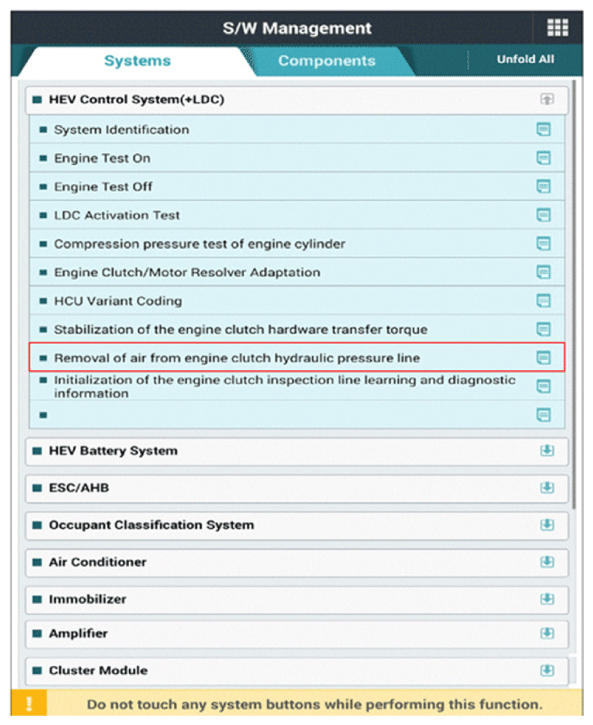

  Fig 1: Screen Display - Bleed Air From Engine Clutch Hydraulic Pressure Line
  Courtesy of KIA MOTORS AMERICA, INC.

  Information

  Refil the hydraulic fluid to MAX-MIN level, if the fluid is lower than MIN level while performing the air bleeding.
