Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Remove the hybrid motor assembly.
(Refer to Hybrid Motor System - "HYBRID DRIVE MOTOR ASSEMBLY ")
Remove the engine clutch actuator.
(Refer to Engine Clutch System - "ENGINE CLUTCH ACTUATOR ")

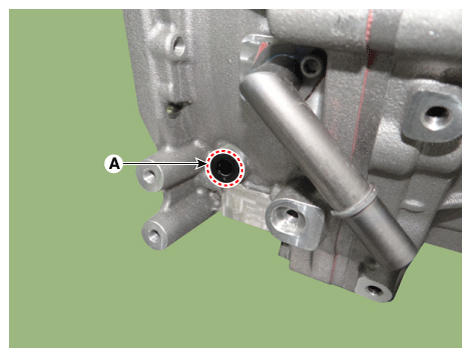

Remove the adapter (A).

Fig 1: Removing Adapter
Courtesy of KIA MOTORS AMERICA, INC.

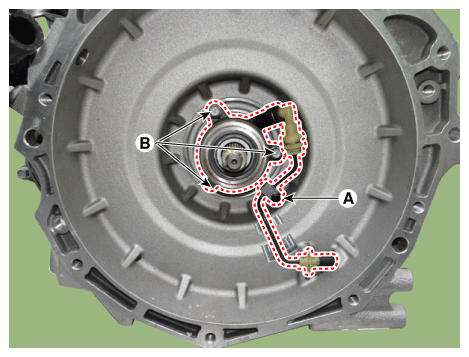

Loosen the bracket bolt (A) and concentric slave cylinder bolts (B) and then remove the concentric slave cylinder.
Tightening Torque:

(A) 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

(B) 9.8 - 19.6 N.m (1.0 - 1.2 kgf.m, 7.2 - 14.5 lb-ft)

Fig 2: Removing Concentric Slave Cylinder Bolts
Courtesy of KIA MOTORS AMERICA, INC.
