Repair Procedures: Installation

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.
NOTE:
- When it is assembled, it must be free from invasive foreign matters and oil leakage.

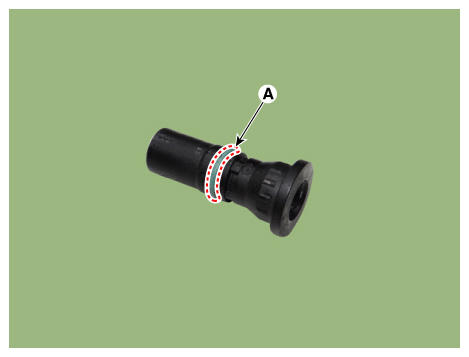

- Before installing the adapter, check the assembled state of the O-rings (A).
Fig 1: Installing Adapter
Courtesy of KIA MOTORS AMERICA, INC.
After replacing the concentric slave cylinder assembly, operate the followings in order using KDS.
1. Perform initialization of the engine clutch inspection line learning and diagnostic information.

  Fig 2: Screen Display - Initialization Of Engine Clutch Inspection Line Learning And Diagnostic Information
  Courtesy of KIA MOTORS AMERICA, INC.
2. Bleed the air from engine clutch hydraulic pressure line
  Information

  Be sure to bleed air from the engine clutch hydraulic pressure line at outside temperature between 0 - 40°C (32 - 104°F). If not, the air bleeding would be not done well.

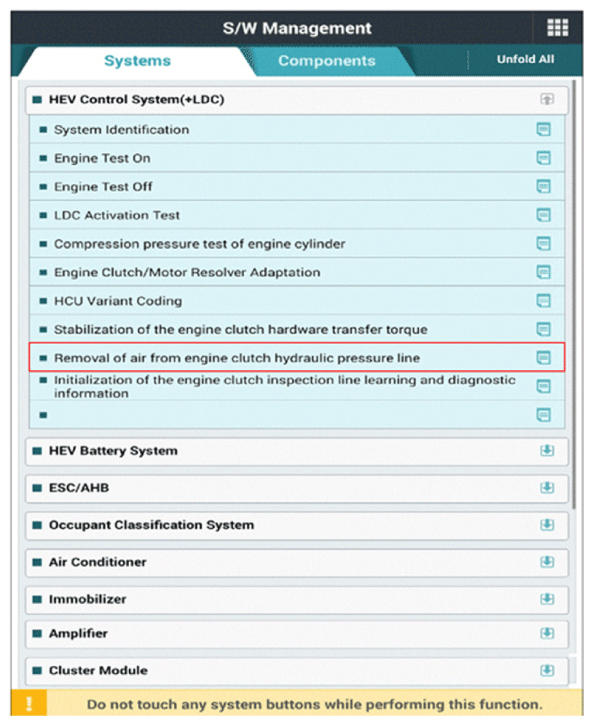

  Fig 3: Screen Display - Bleed Air From Engine Clutch Hydraulic Pressure Line
  Courtesy of KIA MOTORS AMERICA, INC.

  Information

  Refil the hydraulic fluid to MAX-MIN level, if the fluid is lower than MIN level while performing the air bleeding.

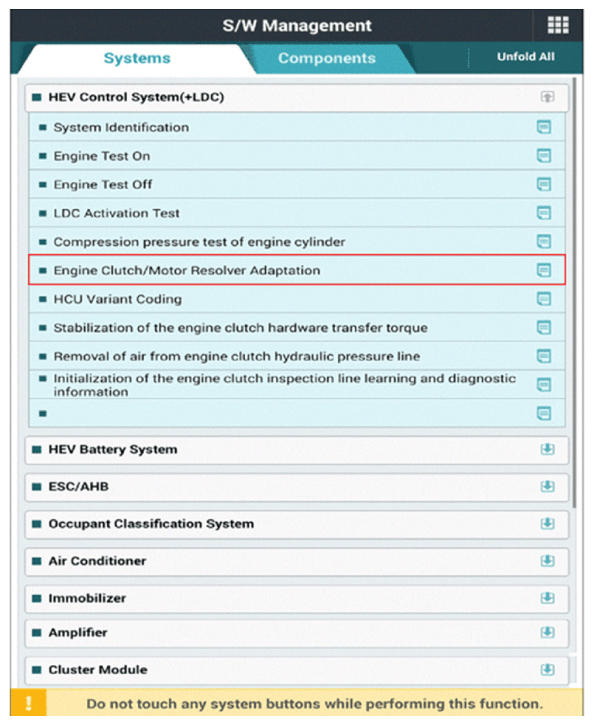

3. Perform engine clutch/motor resolver adaptation.

  Fig 4: Screen Display - Performing Engine Clutch/Motor Resolver Adaptation
  Courtesy of KIA MOTORS AMERICA, INC.
4. Perform stabilization of the engine clutch hardware transfer torque.
Fig 5: Screen Display - Performing Stabilization Of Engine Clutch Hardware Transfer Torque
Courtesy of KIA MOTORS AMERICA, INC.
