Write VIN

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON". & engine "ON".
Perform "Write VIN" in "Vehicle S/W Management" with KDS/GDS.
Specification: refer to Fig 1, Fig 2, Fig 3, Fig 4, Fig 5, Fig 6

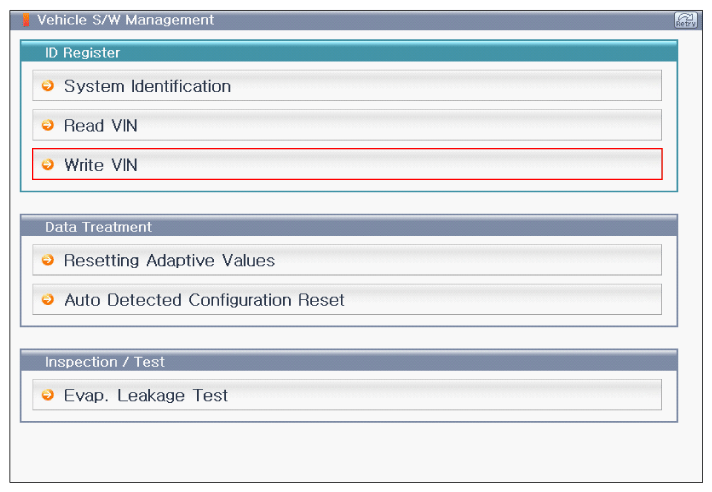

Fig 1: Scantool Display - Vehicle S/W Management (Write VIN Procedure)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Scantool Display - Write VIN Procedure
Courtesy of KIA MOTORS AMERICA, INC.

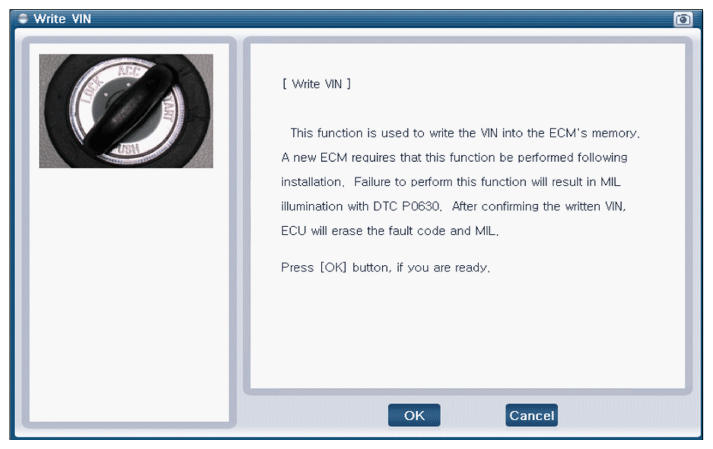

Fig 3: Scantool Display - Write VIN Procedure (Press OK Button)
Courtesy of KIA MOTORS AMERICA, INC.

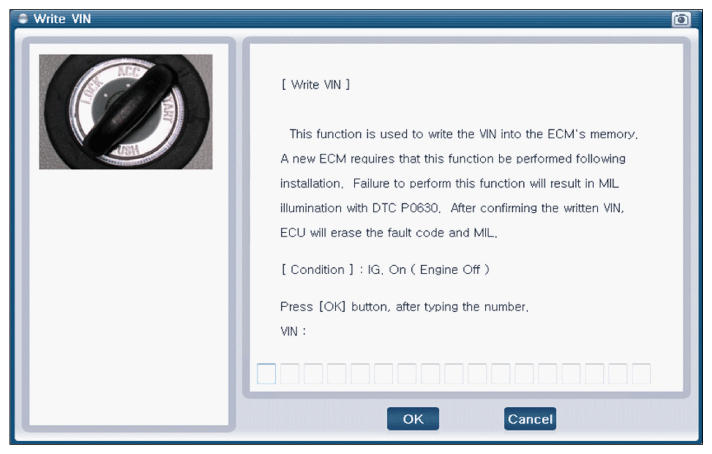

Fig 4: Scantool Display - Write VIN Procedure (Press OK Button After Typing Number)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Scantool Display - Write VIN Procedure With Code
Courtesy of KIA MOTORS AMERICA, INC.

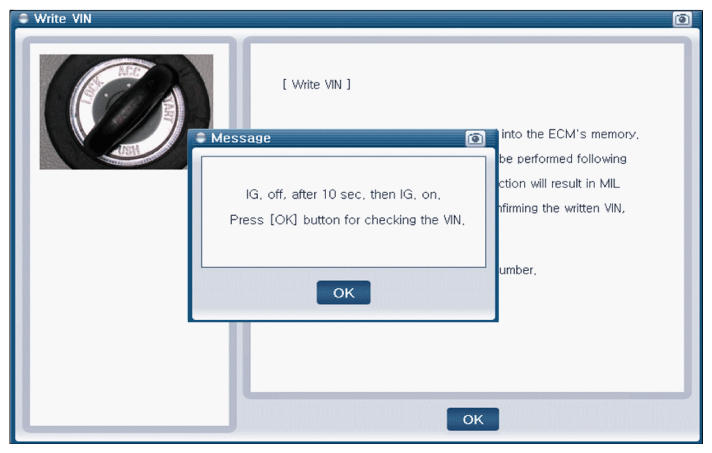

Fig 6: Scantool Display - Write VIN Procedure (Message)
Courtesy of KIA MOTORS AMERICA, INC.
Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
