Engine Control System Diagnosis (3 Of 6)
>>
DTC P0200-00: Injector Circuit/Short
>>
Component Location
Component Location

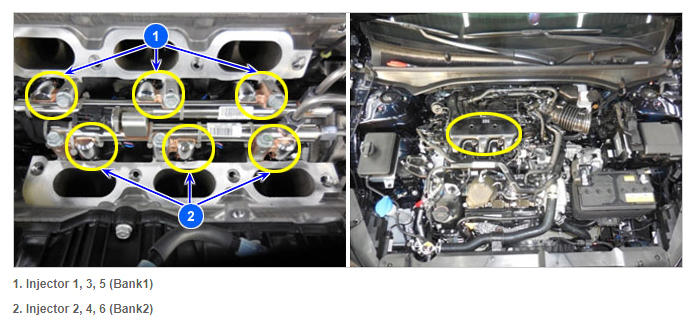

Fig 1: Locating Injector 1, 3, 5 (Bank 1) & 2, 4, 6 (Bank 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
