Monitor KDS/GDS Data

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Check the "Current Data" about related DTC with KDS/GDS.

    Specification:  Refer to Fig 1, Fig 2

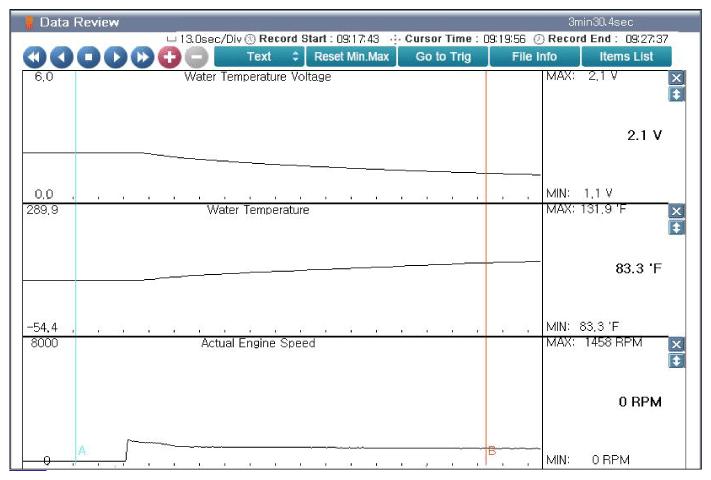

    Fig 1: Screen Display - Cold Engine Condition
    G12284535Courtesy of KIA MOTORS AMERICA, INC.

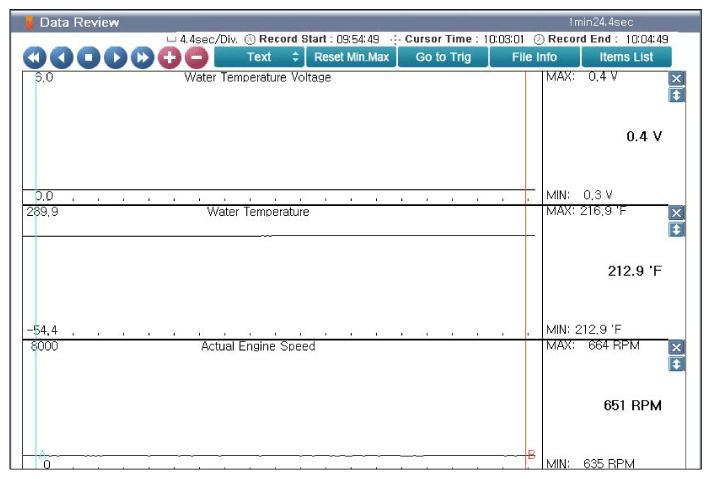

    Fig 2: Screen Display - Engine At Idle And No Load
    G12284536Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the parameter displayed within specification?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
