Repair Procedures: Installation

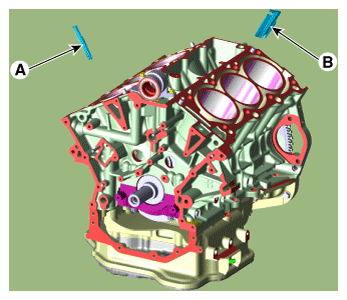

Install the water jacket separator #1 (A), #2 (B).

Fig 1: Installing Water Jacket Separator
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Insert the separator by aligning it with the block inner side protrusion. It must be below the cylinder head installing surface.

Fig 2: Aligning Block Inner Side Protrusion
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Inserting Separator
Courtesy of KIA MOTORS AMERICA, INC.
Install the LH/RH cylinder head assembly and gasket.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD ")
