Removal and Installation

  1. Remove the upper oil pan.

    (Refer to Lubrication Sytstem - "OIL PAN ")

  2. Remove the oil pump (A).

    Tightening torque  :

    20.6 - 32.4 N.m (2.1 - 2.3 kgf.m, 15.2 - 23.9 lb.ft)

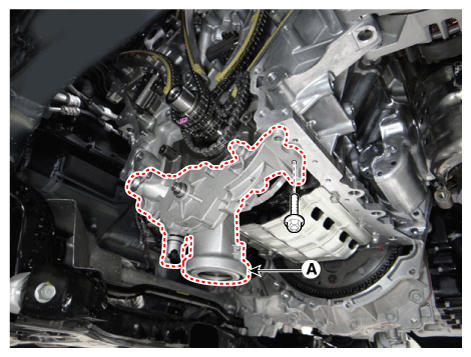

    Fig 1: Installing Oil Pump
    G12290355Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
