Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the instrument cluster.

    (Refer to Indicators And Gauges - "INSTRUMENT CLUSTER ")

  3. Remove the head up display unit bracket (A) after loosening the mounting screws and nuts.

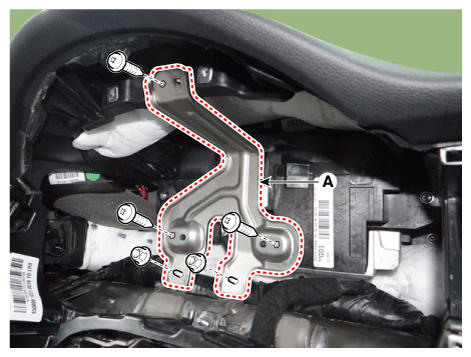

    Fig 1: Locating Head Up Display Unit Bracket Mounting Screws & Nuts
    G12298446Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the head up display unit connector (A).

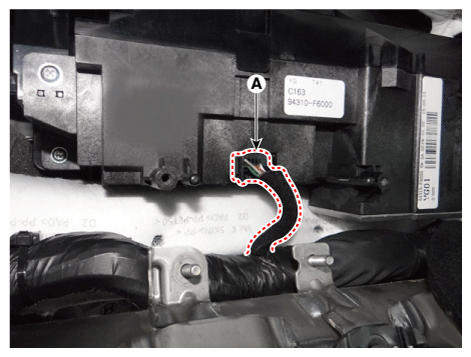

    Fig 2: Locating Head Up Display Unit Connector
    G12298447Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the head up display unit (A) after loosening the mounting screws.

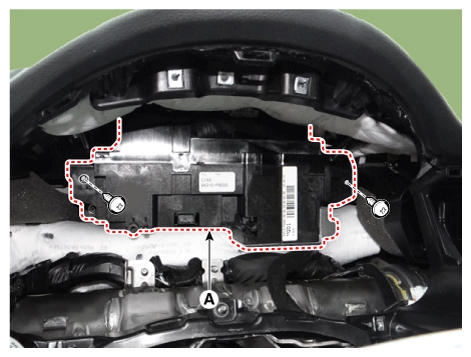

Fig 3: Removing Locating Head Up Display Unit Mounting Screws
G12298448Courtesy of KIA MOTORS AMERICA, INC.
