Repair Procedures: Removal

CAUTION:
  • Handling wireless charging system parts by wet hands may cause electric shock.
  • Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Be careful not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console tray (A).

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY "

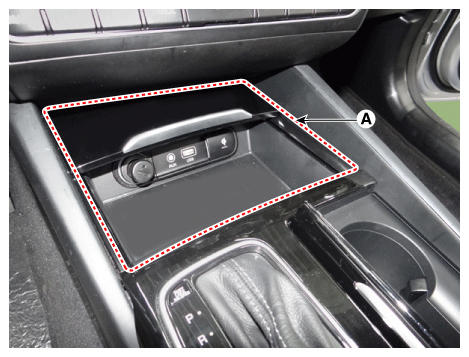

    Fig 1: Locating Floor Console Tray
    G12288319Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connectors (A) from the floor console tray.

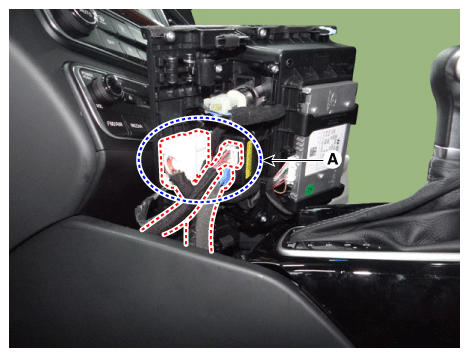

    Fig 2: Locating Floor Console Tray Connectors
    G12288320Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the wireless charging pad (A).

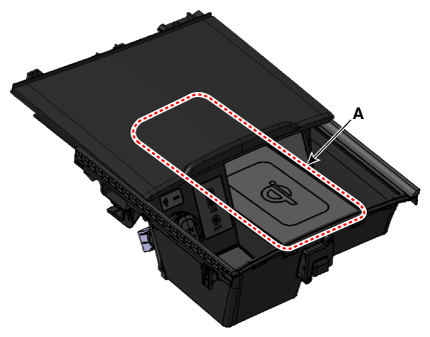

    Fig 3: Locating Wireless Charging Pad
    G12288321Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the wireless power charging unit connector (A).

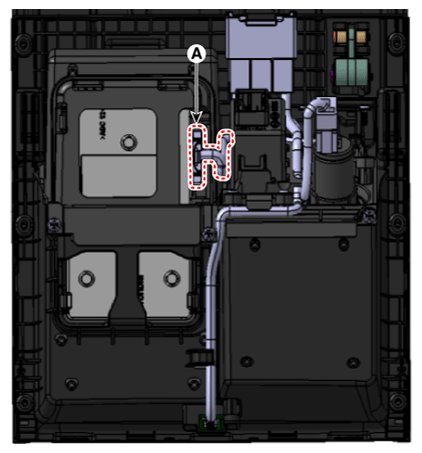

    Fig 4: Locating Wireless Power Charging Unit Connector
    G12288322Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the wireless power charging unit (B) by pressing the fixing hooks (A).
CAUTION: Be careful not to damage the fixing hooks.

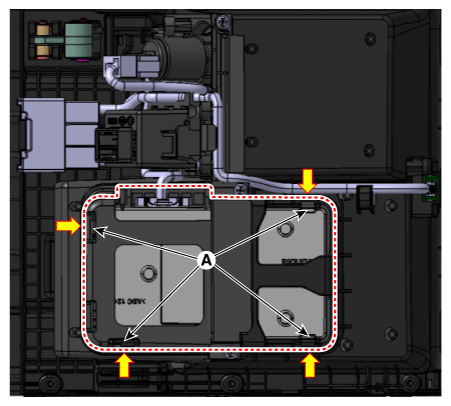

Fig 5: Remove Wireless Power Charging Unit (1 Of 2)
G12288323Courtesy of KIA MOTORS AMERICA, INC.

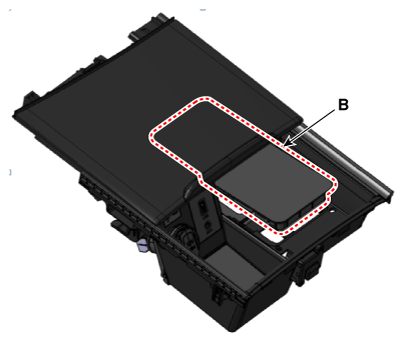

Fig 6: Removing Wireless Power Charging Unit (2 Of 2)
G12288324Courtesy of KIA MOTORS AMERICA, INC.
