Components And Positions: Components

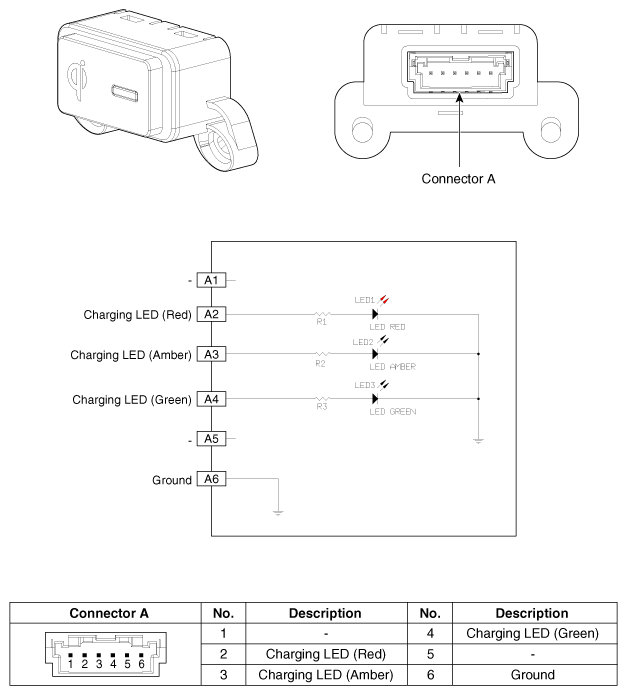

Fig 1: Wireless Charging Lamp Components Location With Connector End View

G12288328

Courtesy of KIA MOTORS AMERICA, INC.
