System Configuration Diagram

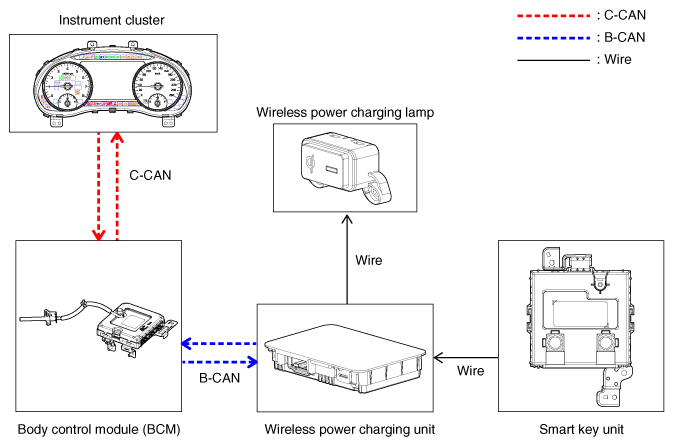

Fig 1: Wireless Power Charging System Configuration Diagram
G12288308Courtesy of KIA MOTORS AMERICA, INC.
  1. Instrument cluster: Alerts about contact with mobile phone
  2. BCM unit: Determines contact with mobile phone
  3. Wireless charging lamp: Displays the charging status
  4. SMK unit: Stops charging during the activation of LF
