Repair Procedures: Disassembly

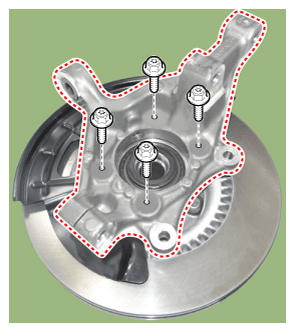

Remove the hub assembly mounting bolts from the knuckle.
Tightening torque:

88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

Fig 1: Remove Hub Assembly Mounting Bolts From Knuckle
Courtesy of KIA MOTORS AMERICA, INC.

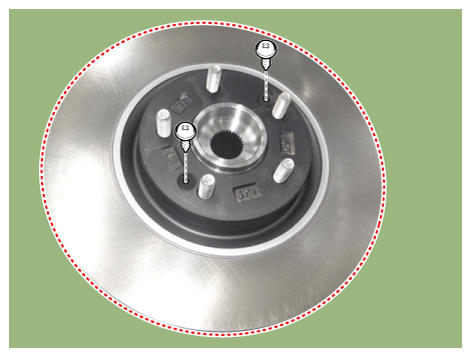

Loosen the screw, and then remove the brake disc.

Fig 2: Remove Brake Disc Screws
Courtesy of KIA MOTORS AMERICA, INC.

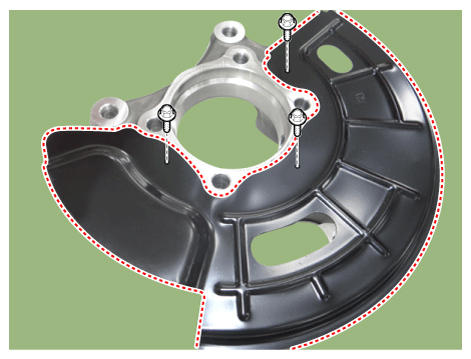

Remove the dust cover bolt from the knuckle.

Fig 3: Remove Dust Cover Bolt From Knuckle

Courtesy of KIA MOTORS AMERICA, INC.
