Components And Components Location: Components

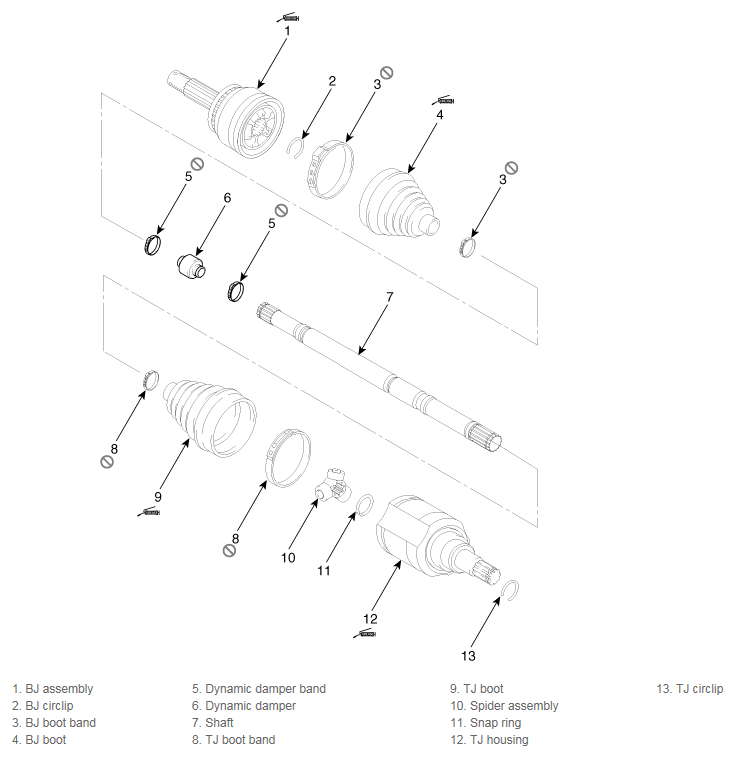

Fig 1: Exploded View Of Dynamic Damper Components

G12294006

Courtesy of KIA MOTORS AMERICA, INC.
