ESP Hydraulic System Diagram

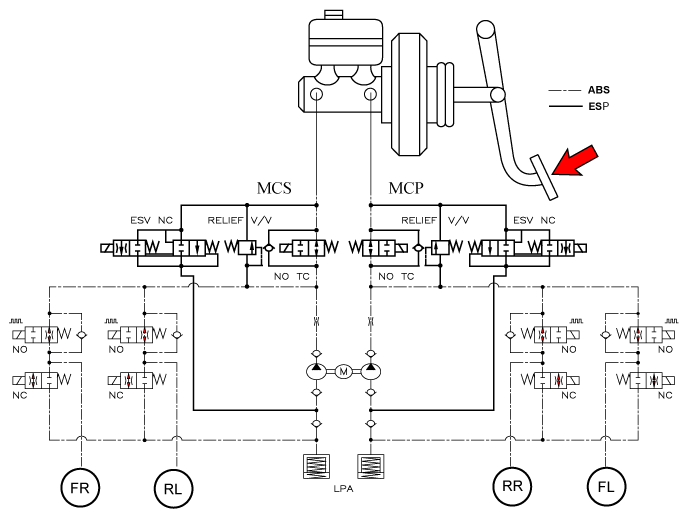

Fig 1: ESP Hydraulic System Diagram
G12294506Courtesy of KIA MOTORS AMERICA, INC.
  1. ESP Non-operation: Normal braking
    Solenoid valve Continuity Valve Motor pump TC Valve
    IN (NO) OFF OPEN OFF OFF
    OUT (NC) OFF CLOSE
  2. ESP operation
    Solenoid valve Continuity Valve Motor pump TC Valve
    Understeering (Rear inner wheel only) IN (NO) OFF OPEN ON ON
    OUT (NC) OFF CLOSE
    Oversteering (Front outer wheel only) IN (NO) OFF OPEN
    OUT (NC) OFF CLOSE
