Repair Procedures: Adjustment: Notes

Remove the rear wheel & tire.
Remove the rear brake disc plug (A).

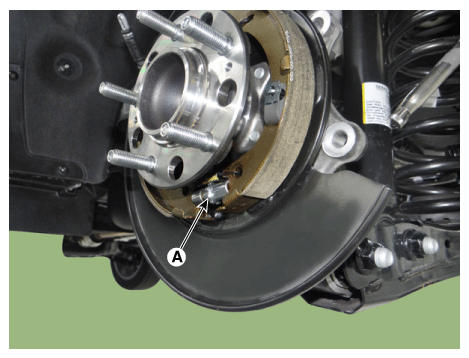

Fig 1: Locating Rear Brake Disc Plug
Courtesy of KIA MOTORS AMERICA, INC.
Rotate the toothed wheel of adjuster (A) with a screwdriver until the disc is not moving, and then return it by 3 notches in the opposite direction.

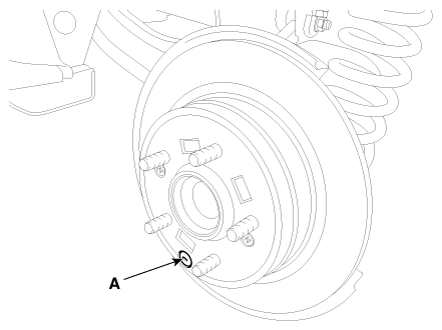

Fig 2: Locating Adjuster

Courtesy of KIA MOTORS AMERICA, INC.

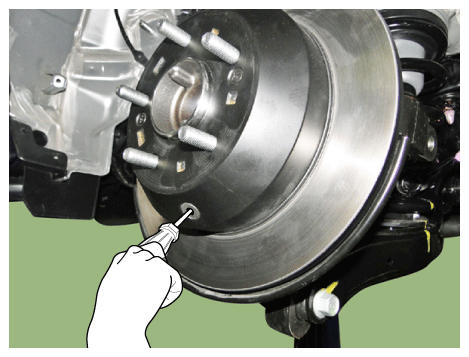

Fig 3: Rotating Toothed Wheel Of Adjuster With Screwdriver

Courtesy of KIA MOTORS AMERICA, INC.
