Power Window Operation
Courtesy of KIA MOTORS AMERICA, INC.

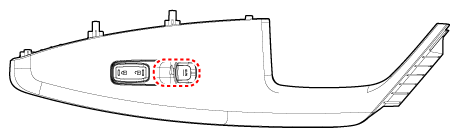

- Manual and Automatic Up/Down Control for Power Windows on Passenger Seat
- The ADM receives the CAN message sent by the DDM, to control the passenger window glass.
- Driver safety specification: The passenger seat window consists of only up/down functions, without any safety function.
- Front safety specification: Manual and automatic up/down signals are set off to the safety window module according to the passenger seat window auto up/down switches.
- Power Window Lock
- On receiving power window lock switch ON signal from the DDM via CAN, the ADM will inhibit the operation of the passenger seat and the rear window at the front passenger side.
- Timer
- When the ignition is switched from "ON" to "OFF", the power window is operable for 30 seconds on receiving an operational command from the BCM.
