Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat outer shield cover.

    (Refer to Body - "FRONT SEAT OUTER SHIELD COVER ")

  3. Remove the slide knob (A) and height knob (B).

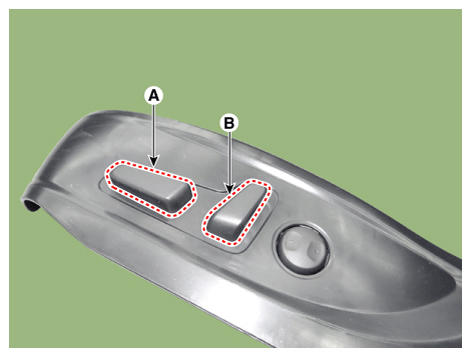

    Fig 1: Locating Slide Knob & Height Knob
    G12298881Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the power seat control switch (A) after loosening the screws.

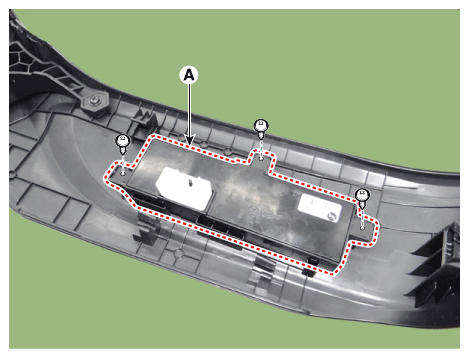

    Fig 2: Locating Power Seat Control Switch With Screws
    G12298882Courtesy of KIA MOTORS AMERICA, INC.
