Repair Procedures: Replacement
CAUTION:
Put on gloves to protect your hands.
NOTE:
- When prying with a flat-tip screwdriver or using a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Be careful not to bend or scratch the trim and panels.
- Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

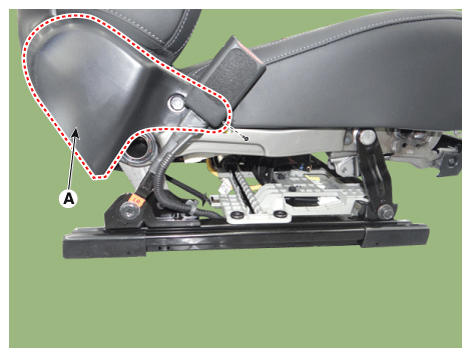

- Using a screwdriver or remover, remove the front seat shield inner cover (A).
- Install in the reverse order of removal.
Information
Replace any damage clips.
