Repair Procedures: Replacement

CAUTION:

NOTE:

When prying with a flat-tip screwdriver or using a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
Be careful not to scratch the body surface.

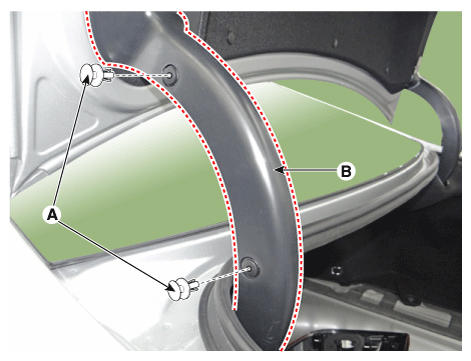

Remove the clip (A) and then remove the trunk lid hinge cover (B).

Fig 1: Locating Trunk Lid Hinge Cover & Clips
Courtesy of KIA MOTORS AMERICA, INC.

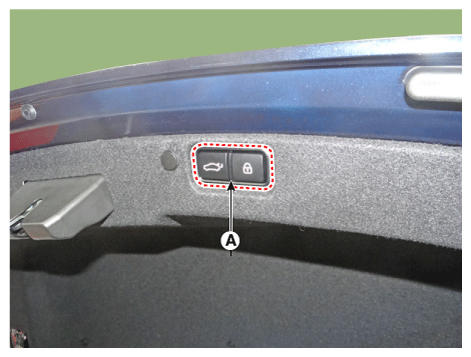

Using a remover, separate the trunk lid switch (A).

Fig 2: Locating Trunk Lid Switch
Courtesy of KIA MOTORS AMERICA, INC.

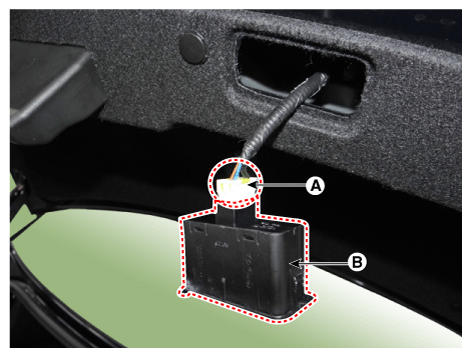

Disconnect the connector (A) and then remove the trunk lid switch (B).

Fig 3: Locating Trunk Lid Switch & Connector
Courtesy of KIA MOTORS AMERICA, INC.

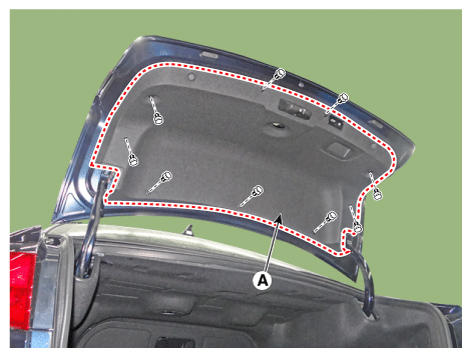

After loosening the mounting screw and clips, remove the trunk lid trim (A).

Fig 4: Locating Trunk Lid Trim With Mounting Screw & Clips
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
