Repair Procedures: Replacement

Information

When removing and installing the trunk lid, work in a group of two or more.

1. Remove the trunk lid trim.

   (Refer to Trunk Lid - "TRUNK LID TRIM ")

2. Disconnect the connectors and trunk lid wiring harness (A).
3. After loosening the mounting bolts, remove the trunk lid assembly (B).

   Tightening torque:

   6.9 - 8.8 N.m (0.7 - 0.9 kgf.m, 5.1 - 6.5 lb.ft)

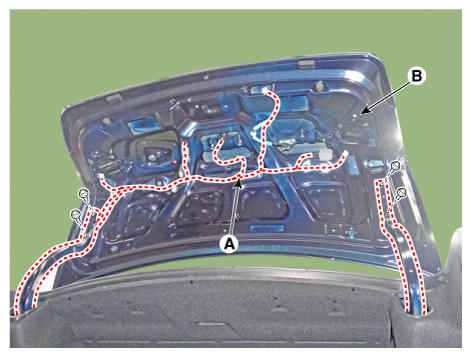

   Fig 1: Locating Trunk Lid Wiring Harness & Trunk Lid Assembly

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install in the reverse order of removal.

   Information

   • Make sure that the trunk lid locks/unlocks and opens/closes properly.
   • Adjust the trunk lid alignment.
   • Make sure that the connectors are connected in properly.
   • Replace any damaged clips.
