Repair Procedures: Adjustment

  1. After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up and down, or right and left.
  2. Adjust the trunk lid height by turning the trunk lid overslam bumpers (B).
  3. After loosening the trunk lid striker (C) mounting bolts, adjust the trunk lid striker by moving it up and down, or right and left.

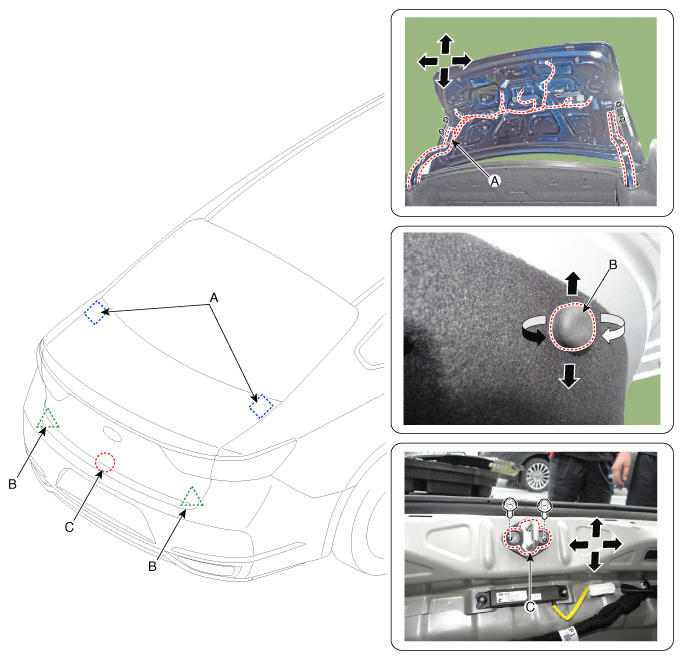

    Fig 1: Truck Lid Adjustment
    G12297144Courtesy of KIA MOTORS AMERICA, INC.
